輕薄 – 厚度0.2mm能減少空間上的需求並維持良好觸控感。
效能 – 明亮、高效能、低電量，我們和客戶共同努力來優化整體設計，使產品能達到高效節能和符合電量需求。
遠端光遠 – 針對敏感區域，光源可以進行遠端遙控以消除EMI。

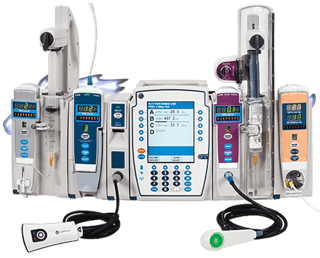

A leading manufacturer of medical devices and laboratory equipment contacted Lumitex to develop a fiberoptic backlight for a membrane switch assembly on a IV infusion pump. The Uniglo Fiber Optic Technology was selected as the backlighting technology, due to it’s design flexibility, the fiber bending Bendio-Glo process, uniformity, thinness, and durability capabilites. One design challege on this medical device was to backlight a large membrane switch overlay with a cut-out for an LCD screen in the middle of the panel, while utilizing one (1) 5mm LED to backlight the entire assembly. The fiberoptic panel with one LED was accomplished by selectively extracting the light only in the specific areas that needed to be backlit, thus allowing a decreased quantity of fiber strands to be crimped inside the brass termination of the panel. Once the main IV device pump was tested and certified, (3) other hand held remotes for the IV pump also required backlighting, which was awarded to Lumitex using smaller fiberoptic backlights.
Key Reasons our Uniglo Fiberoptic Panel Technology was selected

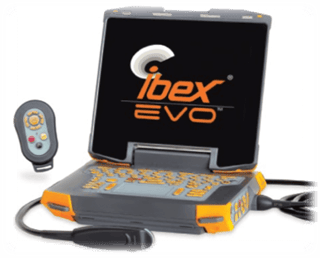

Our customer is proud to be the only U.S. based manufacturer of portable, state-of-the-art, real-time ultrasound scanners for veterinarians and livestock producers world-wide. When developing the latest and most advanced model in its family, their design team presented Lumitex with an opportunity to backlight the membrane switch keypad. With its unique circuitry and limited real estate under the rubber keypad, Lumitex Clad Flat Fiber™ technology offered a great fit. Our engineers were able to easily develop a custom solution conforming to the complex geometry. The intense light of the Lumitex .3mm Clad Flat Fiber™ material was strong enough to provide superior illumination and its thin profile offered exceptional tactile response and effortless integration. Because of this, Lumitex was awarded the business.
Key Reasons our Clad Flat Fiber™ Light Guide Film Technology was selected

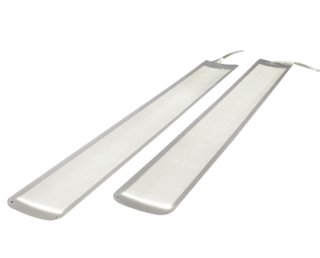

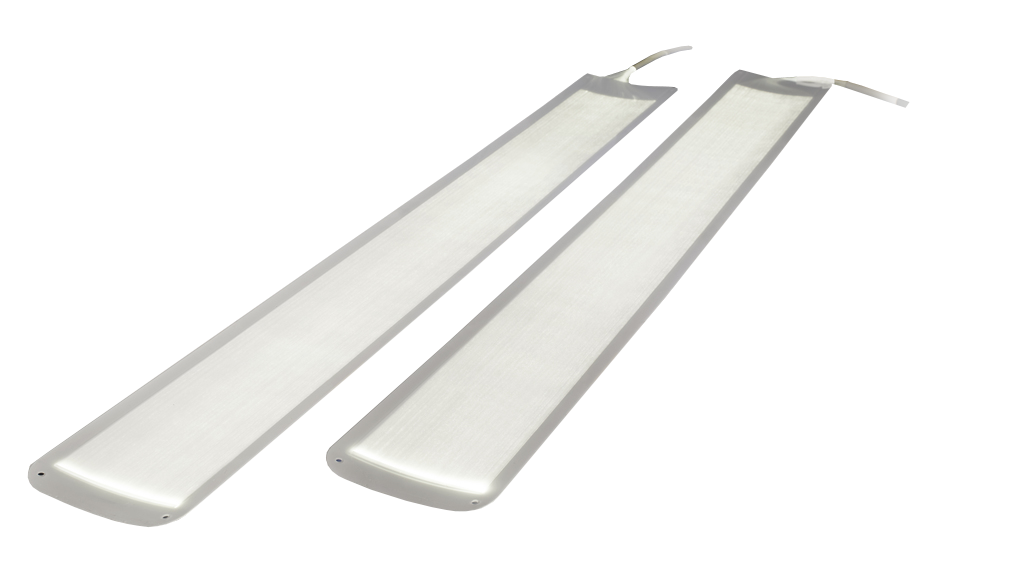

A leading in MRI manufacturing presented Lumitex with two different opportunities to light up the inside of a closed MRI bore. The primary purpose of the bore light strips was to create a therapeutic glow of warm light down the length of the bore to ease the sense of claustrophobia and argoaphobia for patients. Two (2) fiberoptic light strips are used per bore and are lit with only one (1) light source. Both Woven and Uniglo Technologies are utilized with two different bores.
Illuminating the interior of an MRI bore poses a unique challenge. How do you introduce light without affecting the functionality of the MRI? The use of our stranded fiber otic technologies allowed the customer to do just that. The solutions include a 130” cable that connects to a remote light source (also developed by Lumitex). This allows the light source to be placed into a shielded room to prevent any interferance with the MRI. The remote source also allows for quick replacement of the bulb without inturuptin MRI operation.
Key Reasons our Woven and UniGlo Fiber Optic Panels Technology was selected
