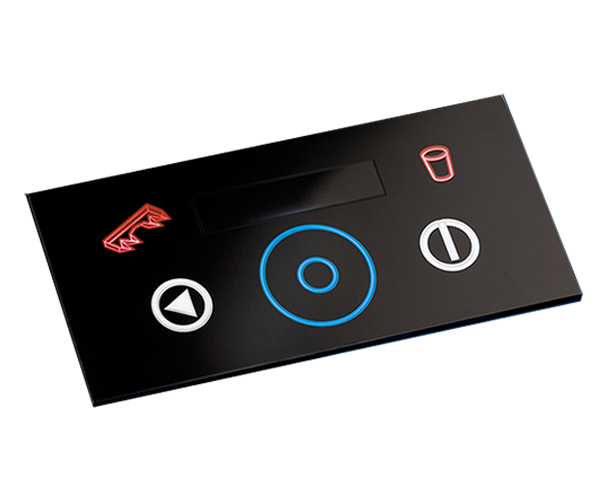

Capacitive Touch Sense Interface

A leading manufacturer of capacitive touch and membrane switch assemblies, contacted Lumitex to develop a custom backlight for a high end appliance, capacitive touch application. The Clad Flat Fiber light guide was selected due to it’s very thin profile, brightness, uniformity advantages to efficiently transmit enough light through the opaque glass. The Clad Flat Fiber was also designed to independently light (5) icons without any light interference from icon to icon, while using less LEDs compared to other light guide films technologies.

Key Reasons our PCF4 – Clad Flat Fiber™ Backlighting Technology was selected

1. LGF Thin profile (.45mm)
2. Enhanced uniformity and light outputs levels
3. Icons independently lit
4. LEDs located in strategic positions
5. Life
6. Lumitex Service – Engineering and design flexibility, quality, and customer service
